When I use boom in recording I have used Audio Technica BP4025 stereo mic in Rycote windshield. It is not too heavy and it gives me stereo recordings. But very often I have been disappointed with the „musical“ sound quality, so I don´t often get quality ambiance recordings with this setup. Saying that, it does not mean BP4025 is a bad mic. BP4025 has a very low noise floor. It is the perfect mic for special circumstances like where size does matter and for very quiet environment/nature recordings.
DPA4060 is a pretty sounding miniature mic, sold in pairs and much lighter than any original stereo mic on the market. That means it is perfect to use for boom recordings. But because DPA4060 is an omni mic it is necessary to separate the capsules to get stereo. It is done in two ways. Separate the capsules with space (around 40cm) to get time difference, or place them in two sides of some sonic baffle materials.
The BP4025 was in a short Rycote WS2 windshield which has overall length (wide) 34cm. So it was important to place the capsules each side of some baffle material to get acceptable wide stereo.
I end up with a simple „binaural“ project I made out of wooden leftover (see pictures).
I decided not to use silicon artificial human ears because the ears will change the frequency curve at 2,5Khz and 5,5Khz, which means I needed to fix the EQ afterwards on all recordings made with this rig.
The result was stunning. The rig I made was lighter and better wight balanced than previous BP4025 setup. The overall wight is only 750gr (mics+wood baffle+WS2 basked+fur). It also gives me wider „stereo image“. But best of all, it withstands wind- and handling noise much better than previous BP4025 setup.
Following recordings are 4 and were made in three locations. The two first one are waves on seashore, then one from a cliff, 300 m above sea level with seabirds and the last one is from a football game in Reykjavik. All where recorded on Sound devices 744.
All recordings are straight from the recorder. Just cut and paste, fade in and out and then down grade from WAV to mp3.

(256kbps / 29Mb)

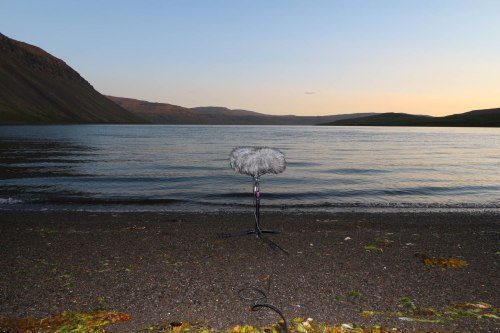

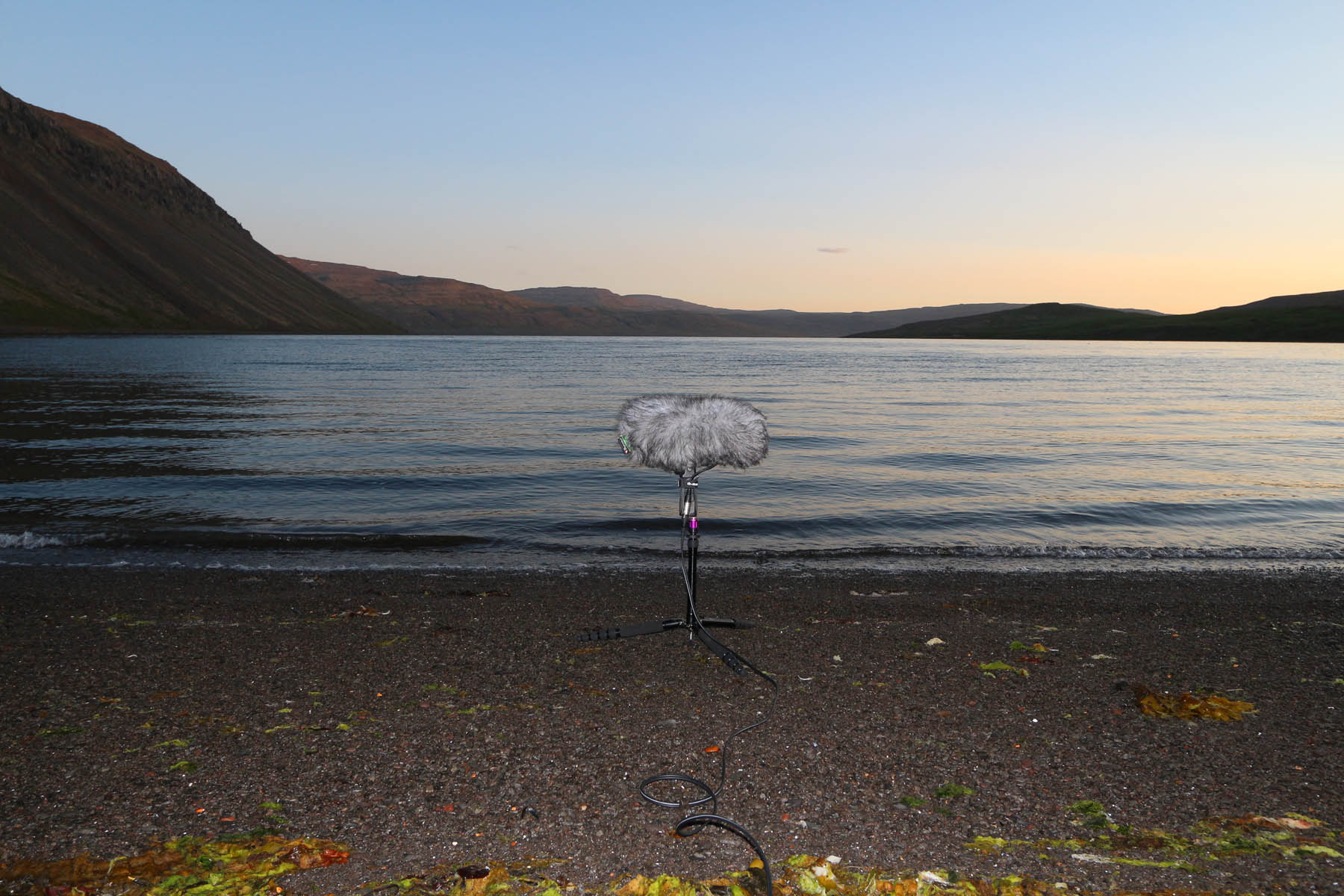

The two first recordings are big and then small waves. The mic have fur, HPF is off and gain at 45db. The mics are faced from the beach to the fjords. You will hear car pass by „behind“ the mic. Notice, you will hear a short „drop out“ when it pass. It is because it passes my car which was located on the road side. See location.
In the cliff recording the mic is without fur. It is possible to hear how strong gust sounds on the Rycote basket, but that is anyway much better (or different) than the my previous BP4025 setup. HPF at 40Hz and gain at 45dB. The boom with the mic reaches the cliff edge about one meter. See location.
The last recording is from a football game celebration in downtown Reykjavik. No fur, HPF at 40Hz and gain at 40dB. The mic stood on a boom about 1 meter above the crowds head. See location.
